The short answer is that it is in order to try to avoid the many door jamb clearance issues that we see with steel buildings. The minimum clearances listed below will allow us to always fit a small wall girt between the column and door jamb to better assist customers or contractors with sheeting/trim application. It will also ensure adequate room for bolt tightening, base plate clearances, etc.
At Corners with Flush Sidewalls: 2'-0" minimum distance (up to a 12" deep corner column) - for corner columns over 12" deep, add the increased depth to this minimum (i.e. 20" column = 2'-8" minimum offset
At Corners with Bypass Sidewalls: Add 8" or 10" to the above minimum distance to account for your bypass girt depth
Between Two Jambs: 2' (for two openings in the same bay)
(click to dismiss)

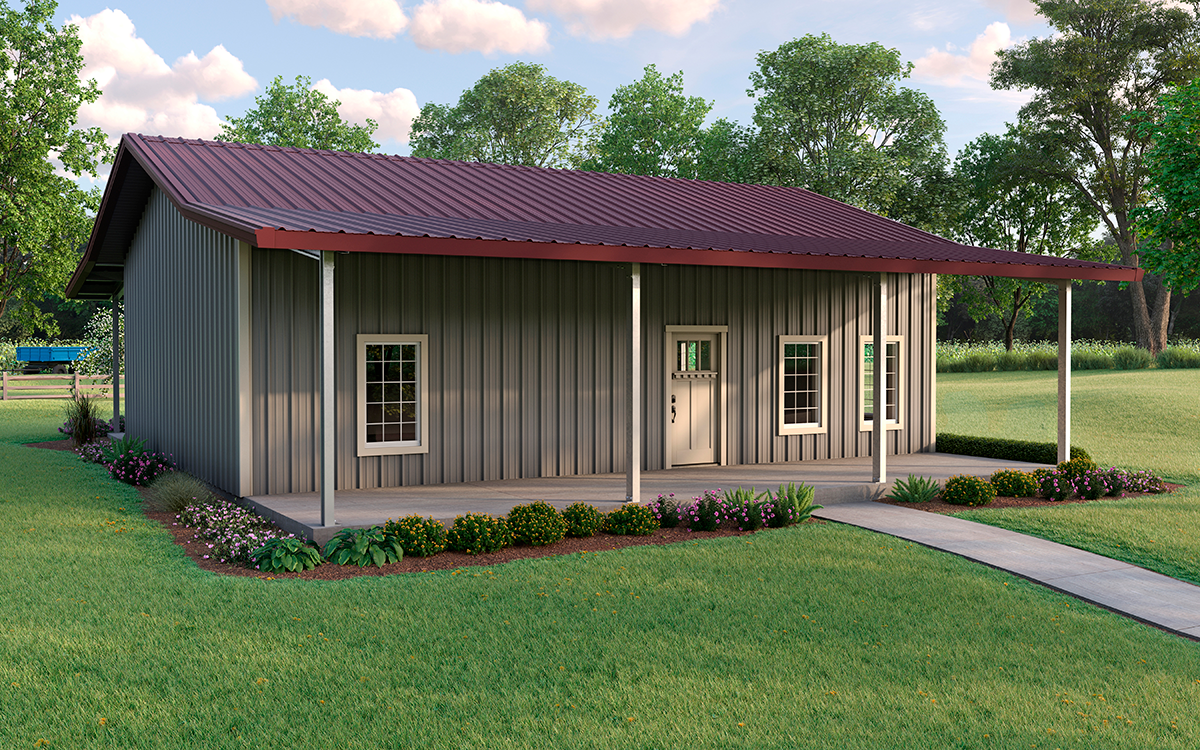

Our Homestead Series 1200 is the perfect recreational retreat and home away from home. With approximately 1200 square feet of open living space, you can design the interior to suit your needs without the concern of interior load bearing walls. Our galvanized steel frame features lighter weight material and a shorter turnaround time than a traditional red iron frame, while still maintaining the strength and durability of a Mueller building made to last.
Each Kit Includes*:
- Bolt together galvanized steel frame
- Engineered cold-formed construction, IBC 2018
- 120 mph wind, 10 lb. snow
- Construction package drawings and engineered stamped drawings
- Open design - supporting large spans and open floor plans
- 26 gauge white roof 35/40 Year Limited Paint Warranty
- 26 gauge colored walls (White, Tan, Light Stone, Light Gray) 30 Year Limited Paint Warranty
- Framed openings for exterior walk doors (Doors not included)
- Framed openings for windows (Windows not included)

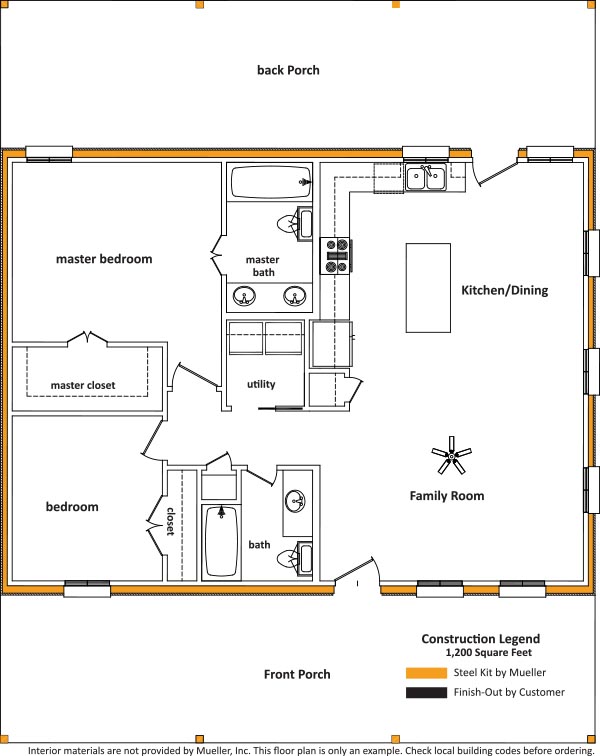

- Suggested floor plan (Interior materials not provided by Mueller, suggestion only)
- 30 x 40 x 12 Main Building
- 4/12 Pitch
- 24" Overhangs, with Soffits
- 10' x 40' Front and Back Porch
- 24" Overhangs (Soffits not included on Porches)
- 2/12 Pitch
* Upgrade options include various designer colors, insulation, gutters, etc.
* Upgrade options include various designer colors, insulation, gutters, etc.Please check local building codes before ordering.
Prices subject to change without notice.
INTERESTED IN THIS PRODUCT?
Frequently Asked Questions
Why does my door or window have to be at least 2' away from a corner?
What is the lead time on a metal building?
Will I need a builder or contractor?
Do I need a permit for the building?
Does Mueller provide concrete and erection services?
Why is it important to check my local building codes?
Do you manufacture your buildings?
How are your buildings assembled?
What kind of tools do I need to do this myself?
Can you refer an Independent Contractor?
* Colors may vary by monitor settings. Please contact us to get the most accurate color representation. We will be glad to provide you with color samples.
** Galvalume Plus has no uniformity of appearance guarantee. Each individual sheet, even upon delivery, may have a different color, gloss, sheen, texture or spangled appearance. If uniformity of appearance is desired, a painted product is required.
Click here for information about our paint warranties.
